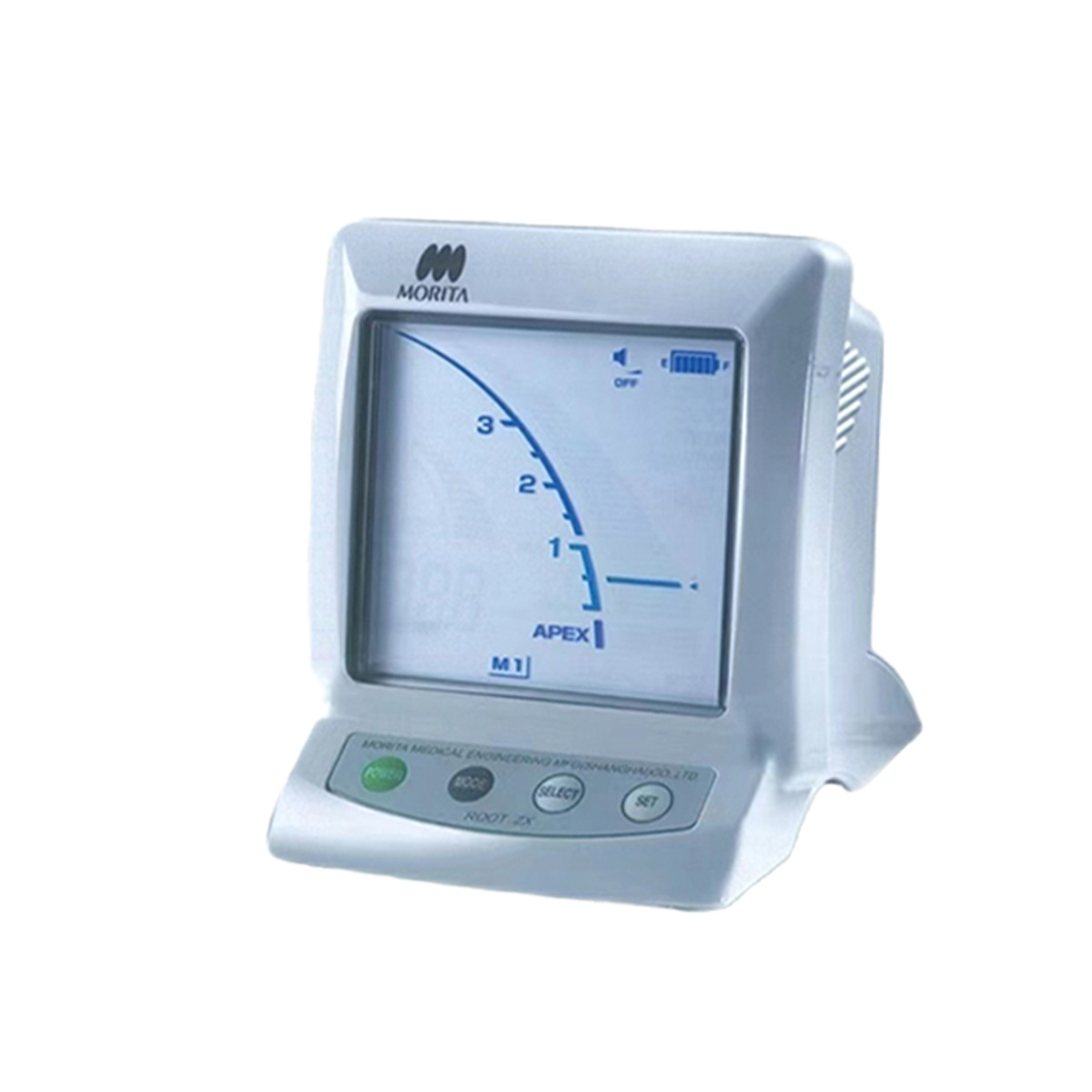

The apex locator with the patented Quotient Method always supplies precise measurement results, irrespective of irrigation solution or blood in the root canal. If you want, the DentaPort Root ZX can be more than just a high-precision apex locator: In combination with the TriAuto OTR root canal preparation module, the product can also be used for the preparation of root canals.
Product Features :
Apex Locator Function (Root Canal Length Measurement Mode):
- Automatic and High-Precision Measurement in Both Dry and Wet Conditions: Automatically and accurately measures root canal length, regardless of whether the canal is dry or filled with fluid.
- Fully Automatic Calibration, No Manual Adjustment Required Before Use: No need to adjust settings for different patients before use.
- Automatic Environmental Adaptation: Automatically adjusts to changes in temperature, humidity, and other environmental factors, ensuring accurate measurement.
- Dual Frequency Measurement: Capable of measuring accurately even when the root canal is filled with liquids like sodium hypochlorite, physiological saline, hydrogen peroxide, or blood/pus.
- Unaffected by Tooth Type, Apical Foramen Size, or File Thickness: Provides consistent measurements regardless of the specific conditions of the tooth or file used.
- Clear and Intuitive Color Display:
- Large, High-Contrast Color Screen: Clearly displays the real-time movement of the endodontic file within the canal, corresponding to the scale values.
- Customizable Apical Reference Point: The flashing apical position (work length mark) can be set arbitrarily by the user.
Sterilization & Design:
- Autoclavable Accessories: File holders and lip hooks can be sterilized by autoclave, preventing cross-contamination.
- Compact File Holder Structure: Designed for convenience and easy sterilization.
Additional Highlights of Apex Locator Function:
- Accurate and High-Precision Measurement in Both Dry and Wet Conditions.
- Measurement Unaffected by File Thickness.
- Large LCD screen for clear and intuitive display of file depth and apical position.
- Audible Alerts: Provides audio feedback indicating the file’s position during measurement.
- Low Power Consumption with Rechargeable Battery: Long battery life (can also use AA alkaline dry cells for measurement mode only).

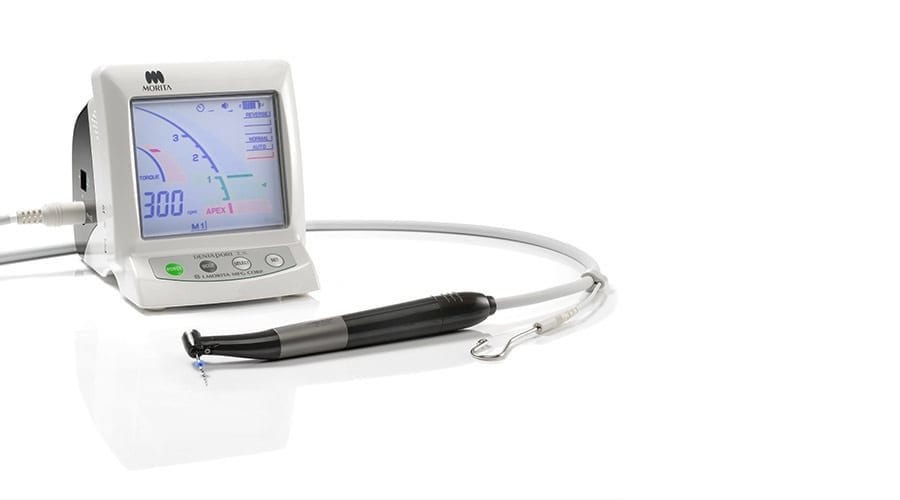

Integrated Endodontic Motor Function (Optional – If combined with Root Canal Enlargement Function):
- Fully Automatic Control System for Root Canal Enlargement:
- Auto Apical Slow-down/Reverse: Automatically slows down or reverses rotation as the file approaches the apex.
- Auto Torque Reverse/Slow-down: Automatically reverses or slows down when torque exceeds a preset limit, preventing file fracture.
- Auto Start/Stop: File automatically starts rotating when inserted into the canal and stops when withdrawn.
- 8 Adjustable Speed Levels: Speeds can be adjusted from 50 to 800 rpm to suit various root canal treatment needs.
- Ergonomically Designed Handpiece: Comfortable for the dentist to operate.
- Autoclavable Test Accessories: Ensures hygiene and prevents cross-infection.
- Stable Rotation Speed during Operation.
- Digital Display of Rotation Speed.
- Adjustable Torque Settings.
- Real-time Display of Torque Value and Changes.
- Optional Foot Pedal Switch.
- Selectable Auto Apical Reverse or Auto Apical Stop.
- Extended Battery Life (2 hours continuous use after a single charge).
- 3 Memory Presets for Speed and Torque Settings.
- Recommended for use with Ni-Ti files for curved canals.
- Main functions displayed on screen, adjustable via bottom switches.
| Product name | DentaPort Root ZX |
|---|---|
| Electric power supply | 3x 1.5 V AA-batteries 0.2 V |
| Display | LCD Colour Display |
| Size | W 105 mm x D 105 mm x H 105 mm |
| Weight | approx. 370 g |
Product Introduction (产品介绍):
Root Canal Length Measurement Mode:
- Unaffected by Internal Canal Conditions: Accurately and precisely measures root canal length regardless of whether the canal is dry or filled with electrolytic solutions (e.g., blood, physiological saline).
- Unaffected by File Thickness.
- Large LCD screen for clear and intuitive display of file depth.
- Audible Alerts for File Position.
- Low Power Consumption: Powered by 3 AA batteries, offering long battery life (up to 100 continuous hours).
- Autoclavable Test Accessories: Ensures patient safety and prevents cross-contamination.
- Upgradeable with Root Canal Enlargement Function.
